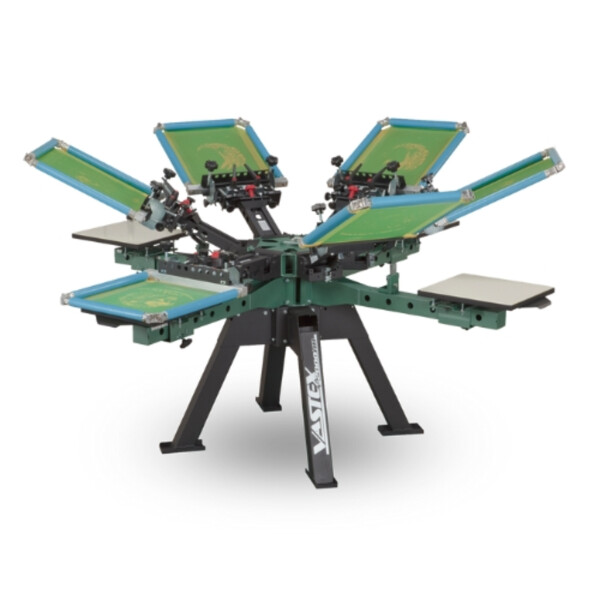

V-2000HD - Industrial Screen Printer (Rear Clamp)-3 Station, 6 Color-V2HD-36

BROCHURE & SPECIFICATIONS
OPERATIONS MANUAL


The Vastex V-2000HD Series of heavy-duty manual screen printing presses offers the screen printing professional an unequalled range of advanced capabilities that decrease set up time, improve registration accuracy and increase productivity.

Backed by an unprecedented 25-year warranty, these are industrial-strength machines in every respect, with steel-tube legs, 3 in. (76 mm) square steel rotor arms, heavy-gauge steel rotor assemblies, and never-warp steel pallets, with all critical moving parts — including registration wheel locks — gliding on ball bearings.

V-2000HD screen printing presses are offered in models from one-station/ one-color to 10-stations/ 10-colors in increments of one station and/or one color. Fully expandable, they allow growing shops to start small and add stations and print heads to boost output or achieve special effects.

The V-2000HD heavy duty print head allows the industry's fastest set-up and micro-registration, and accepts clamp-on DiGiT™ athletic numbering jigs and side-clamp accessories in 20 seconds.

RELIABLE
25 Year Warranty*

100% WRENCH FREE ADJUSTMENTS
Allows independent head leveling, "off-contact" adjustment, micro-registration with zero backlash, and complete removal or installation of the print head in seconds.

HEAVY DUTY
Never warp steel pallets with rubber tops and the new corner clamp pallet arm

ADJUSTABLE
6 way screen leveling

PRECISE
Holds accurate multicolor printing registration

ACCURATE
Embedded registration bearings (close to the screen, stays clear of spray tack)

FLEXIBLE
Prints all heads down

SMART
Gas lifters with 16 position variable lift strength

STRONG
12" (30 cm) wide steel rear screen clamps joined by a steel clamp bar for off center clamping 2.75" (6.9 cm) precision ground center shaft

DURABLE
3" (7.6 cm) square steel rotor arm with ruler indicator

INNOVATIVE
Elevated Pallets — no need to stretch shirts over the arm (also compatible with quick stretch jacket attachment)

EXCLUSIVE
Zero backlash bearings on screen arm pivot

CONVENIENT
Adjustable micro clamp levers

EXPANDABLE
Upgrade at any time from 1 station 1 color tabletop to 10 station 10 color rotary floor press!
